Have purchased a 6.5L Turbo with a 4L80E trans. This will be replacing
the 383 and 700R4. Pictures below.

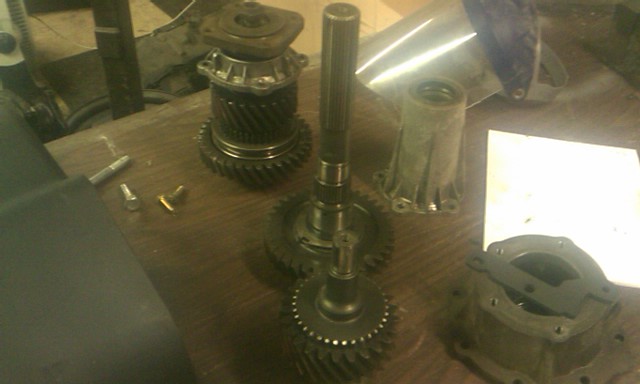

Got started on the Transfer Case. It is a NP205. It has a 32 spine
input shaft. Ordered a complete rebuild kit.
![](images/IMAGE_119.jpg)

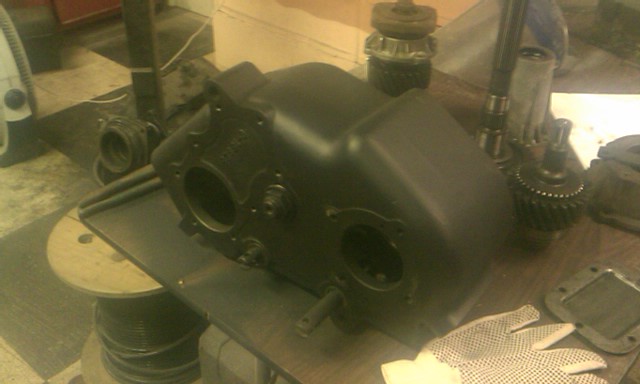

Everything is cleaned up and case has been painted.
![](images/IMAGE_118.jpg)
Here is where the fun part takes place. I have called everyone and searched
everywhere for an adapter to mate the NP205 figure 8 to the 4L80E trans. NO
ONE makes this adapter. I have the 4 wheel drive trans not the 2 wd. AA said
I could get their kit but I would have to put the longer trans shaft in. The
motor and trans only have 90K on them so I do not want to rebuild them for a
while.

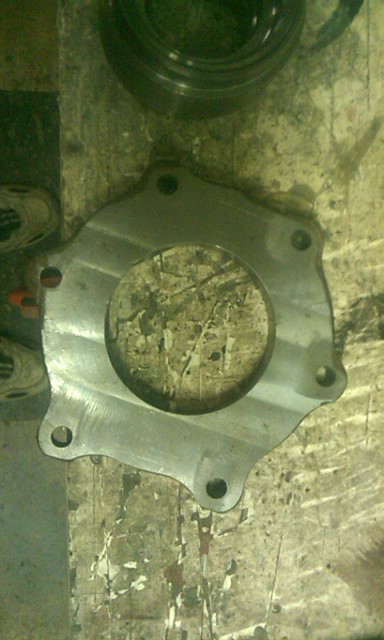

So I made my on adapter. I have a machine shop so making the part was a
matter of taking careful measurements of the 350 adapter that I have and the
of the adapter for the 4L80E trans.

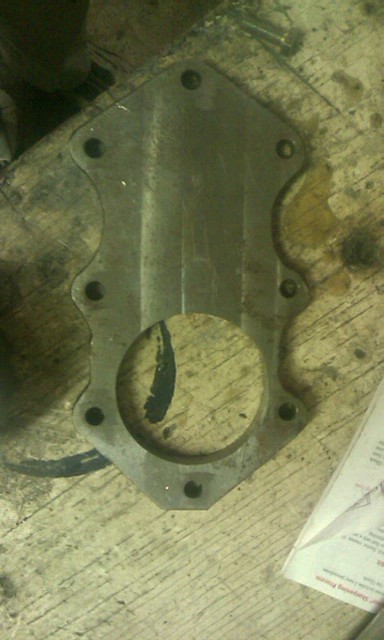

![](images/IMAGE_108.jpg)
![](images/IMAGE_107.jpg)

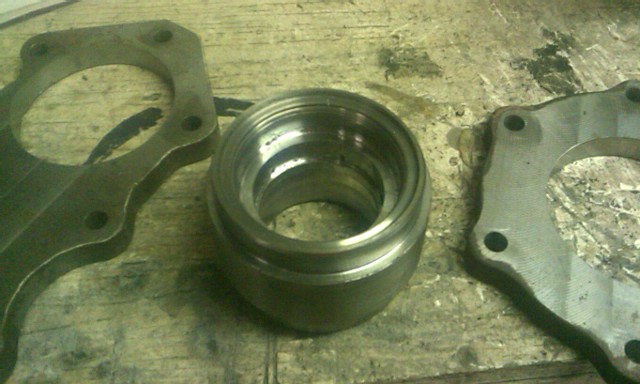

4140 steel, 1/2 inch thick..
![](images/IMAGE_109.jpg)
![](images/IMAGE_110.jpg)

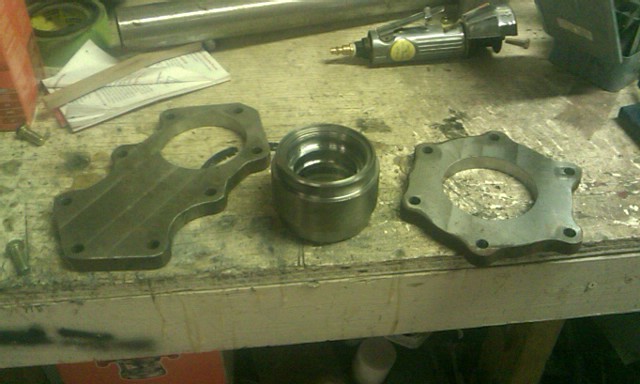

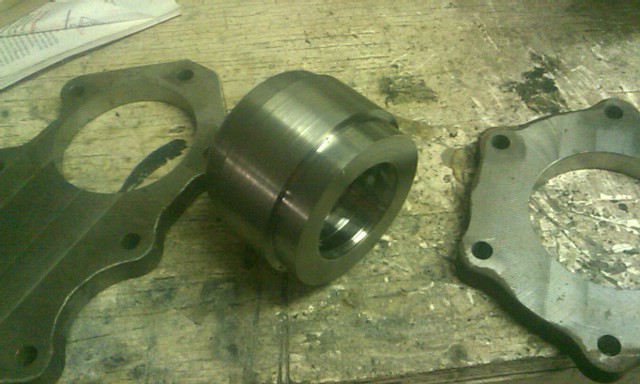

Another view of the adapter.
![](images/IMAGE_106.jpg)
![](images/IMAGE_115.jpg)
![](images/IMAGE_116.jpg)

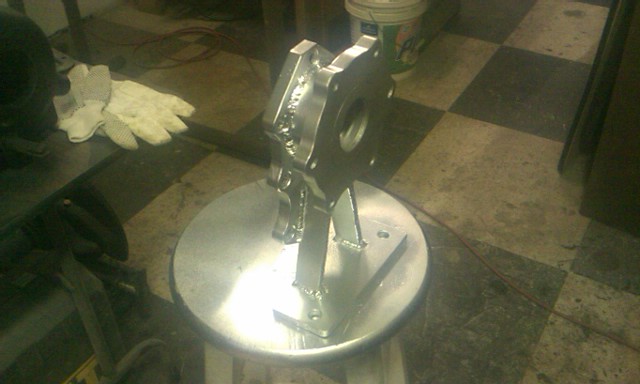

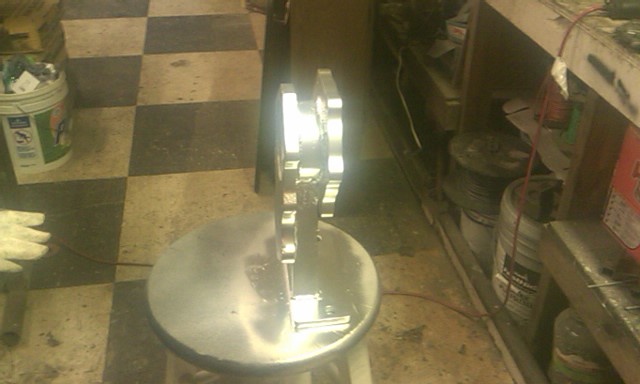

Finished product.
![](images/IMAGE_120.jpg)

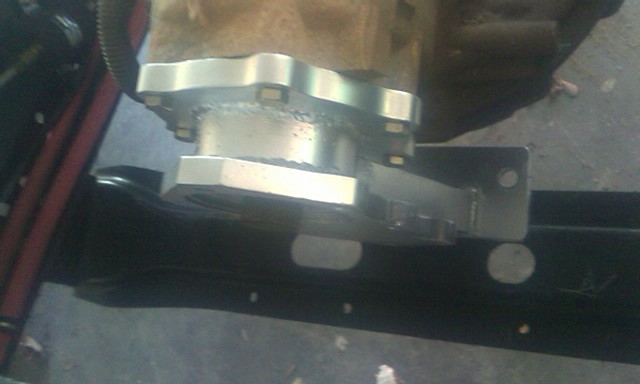

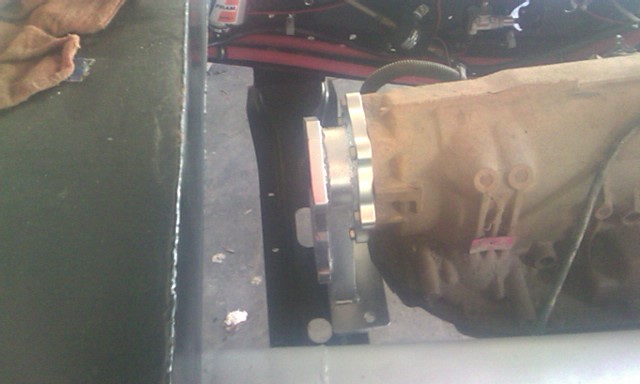

Trial fitting the adapter to the trans. Looks like I will have to move the
cross member.
![](images/IMAGE_121.jpg)

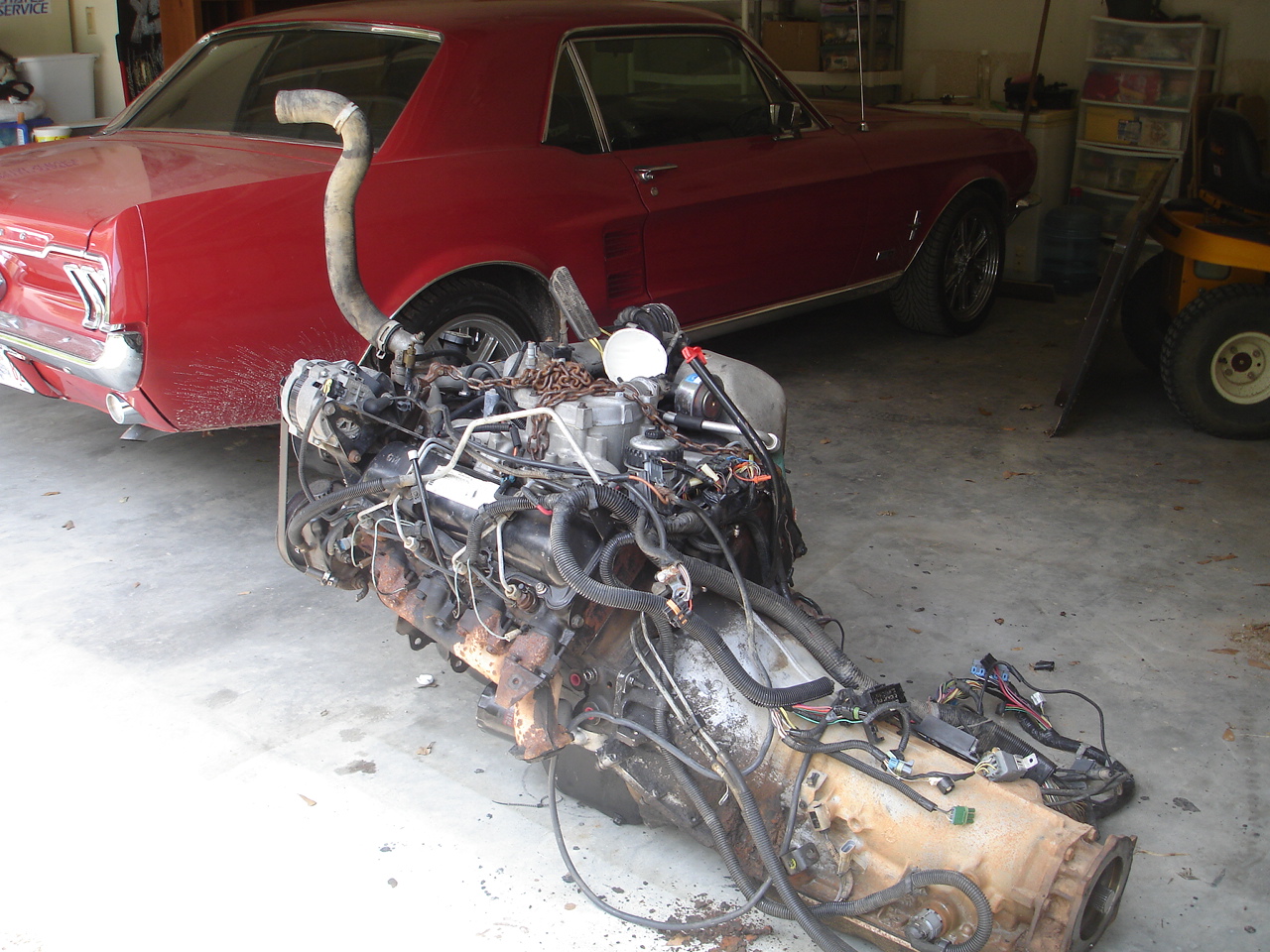

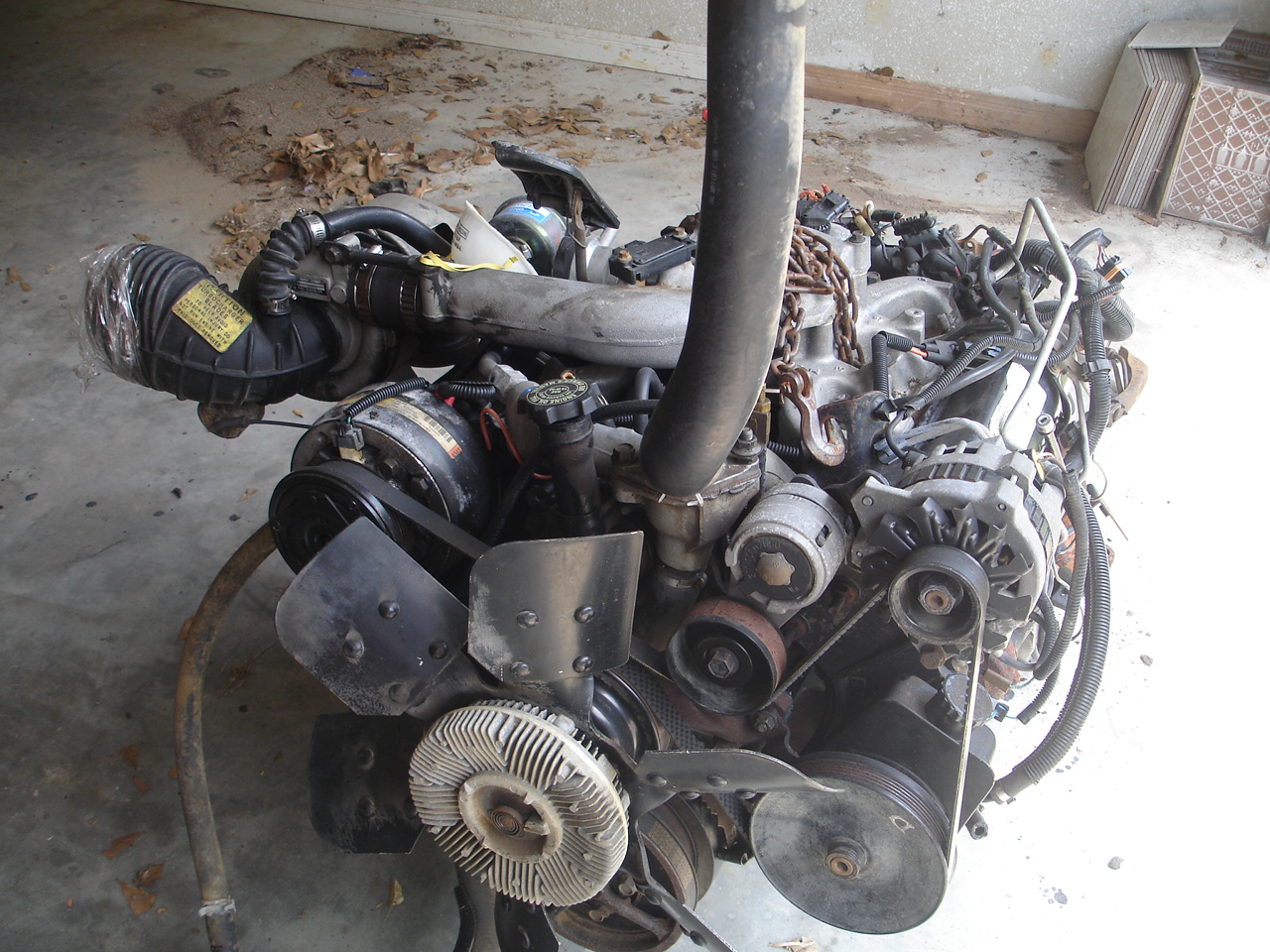

Here is the motor. Complete pull out with everything, no wires cut. Even got
the gas pedal.
![](images/DSC01805.JPG)
![](images/DSC01808.JPG)
The Mustang is what I bought my wife. She loves this car. 1967, 289, auto,
GTA. Not original, This car screams.
![](images/DSC01810.JPG)

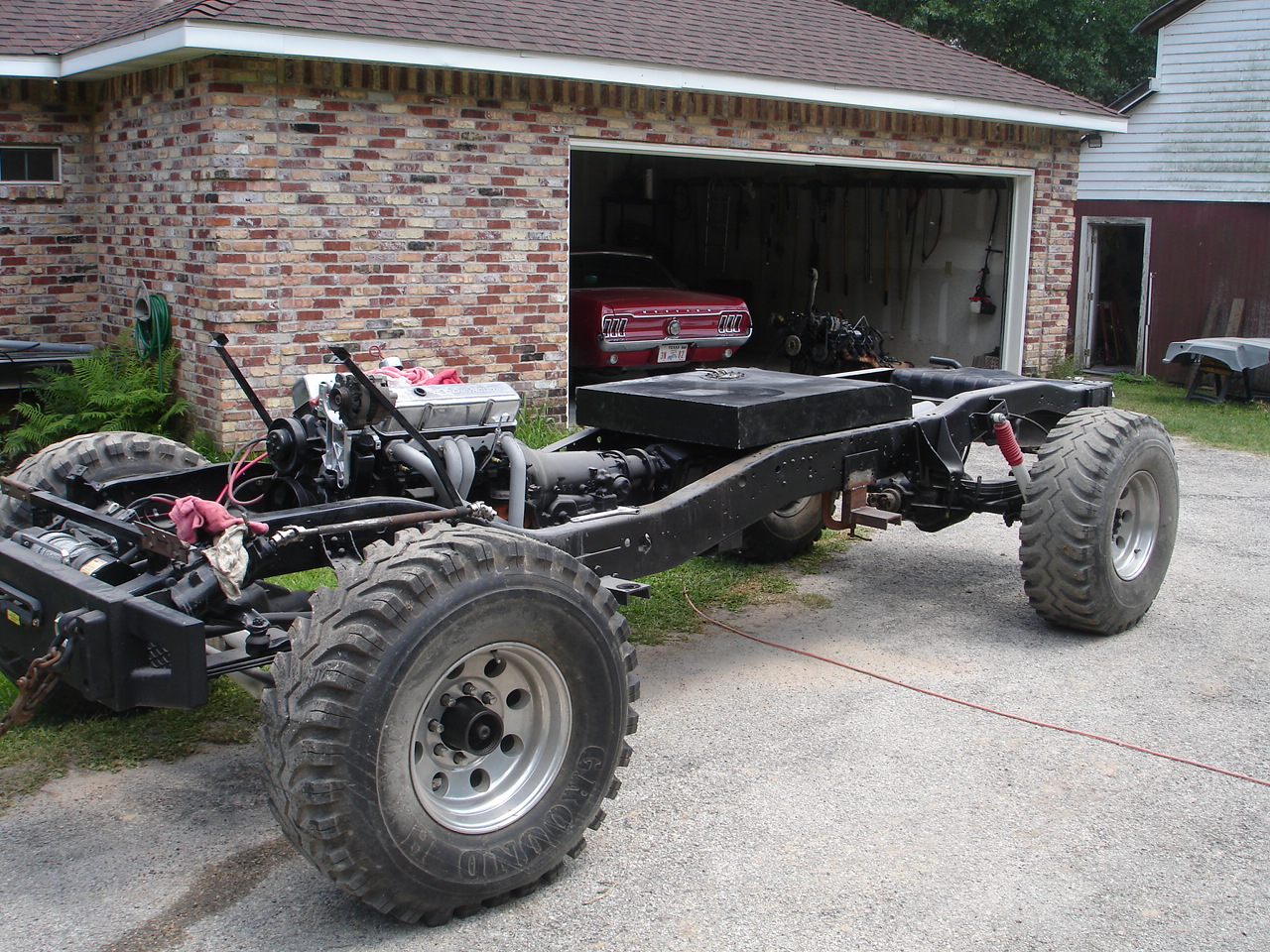

Here you can see an old picture of the 383 SB and 700R4 trans. That's an
extra gas tank I built, 52 gallons.
Stay tune.
